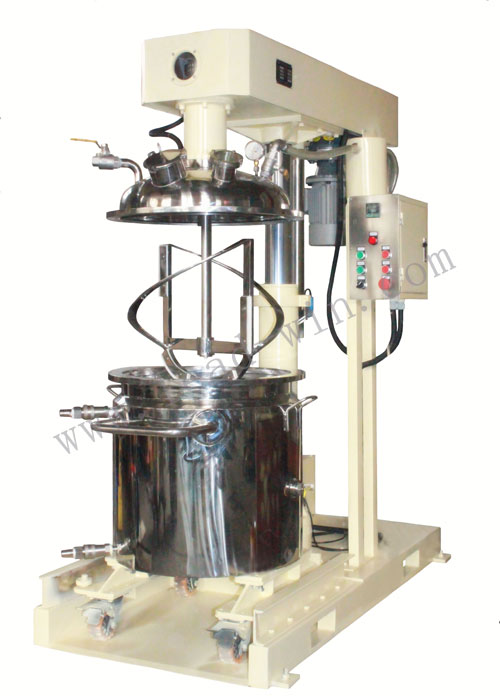

Low Speed Mixer
Products profile
As one of high-efficient mixer, low-speed mixer has the stirrer options as frame, anchor, butterfly , spiral, blade, propeller, turbo and cup-shape and vacuum configuration is available to meet special working condition requirement. To increase the mixing efficiency, lead-win mixer can be lifting during the mixing process. This machine is widely used production of adhesive, offset ink, high-viscosity putty.
Products Features
1. Low-shear force, strong circulation;
2. Low-speed running, low energy consumption;
3. Easy assembly and convenient disassembly
4. Suitable for middle and high viscosity material mixing, dissolving, heat transferring, circulation
5. Equipping with imported frequency converter to control speed.
Technical Data
Mode & Spec. LLSM-50L LLSM-100L LLSM-200L LLSM-500L LLSM-1000L Tank Dia:×Dep. Φ500×450 Φ550×550 Φ750×700 Φ1000×830 Φ1266×1000 Volume Full liters 88 130 270 650 1285 Valid liters 50 100 200 500 1000 Motor Mixer KW 1.1/1.5 3 5.5 7.5/11 22 Speed Mixer RPM 50 50 35 25 20 Remarks：
1. All data are Lead-win standard spec. Customized design are available according to real production requirement;
2. Other options：LLSM -5L、LLSM -60L、LLSM -150L、LLSM -400L、LLSM -800L、LLSM -1500L、LLSM -2000L、LLSM -3000L。
3. Lead-win also supplies charging system, discharging unit, filtering system, conveying system and filling system.
