Multi-functional Mixer
Products profile

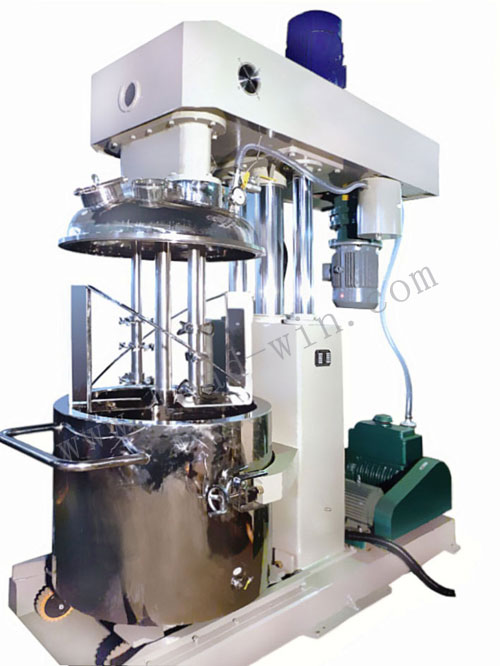

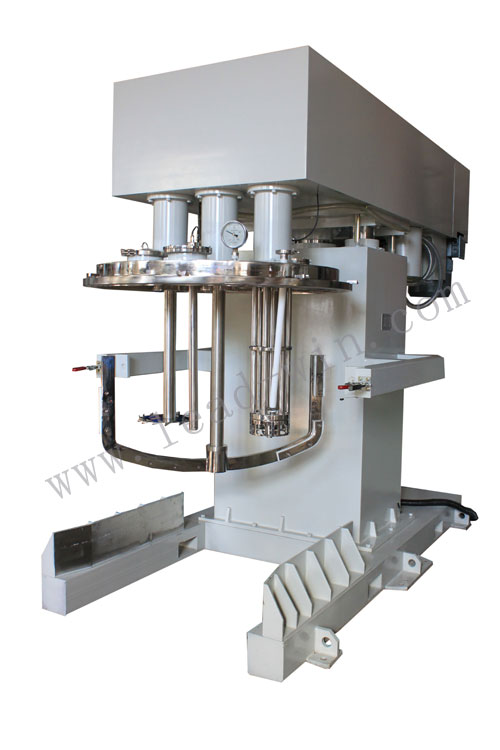

Multi-functional Mixer combines strong low-speed mixer with high-speed disperser/homogenizer to well handle middle and high viscosity material and thixotropic material. This machine is applied to mix, dissolve, and homogenize mixtures.
Products Features:
1. Combination stirrers applicable for wide viscosity material;
2. Vacuum or explosion proof configuration for option;
3. Corrosion resistance zero leakage with soft seal or static seal, to enhance sealability 50% better than traditional one and make the vacuum degree to -0.098MPa and long-time keep the vacuum to give a free-contamination working condition;
4. Equipping with imported frequency converter to control speed;
5. Customized design is available.
Technical Data
Mode & Spec. LMFM-100L LMFM-300L LMFM-500L LMFM-1000L Tank Dia:×Dep. Φ596×500 Φ836×720 Φ1000×830 Φ1266×1000 Volume full liters 140 395 650 1258 valid liters 100 300 500 1000 Motor mixer KW 2.2 4.5 5.5 7.5 Disperser/homogenizer KW 5.5 11 15 22 Speed mixer RPM 50 35 35 25 Disperser/homogenizer RPM 3800 2800 2100 1800 Remarks:
1. All data are Lead-win standard spec subject to real production requirement;
2. Other options:：LMFM-50L、LMFM-80L、LMFM-200L、LMFM-600L、LMFM-800L、LMFM-1500L、LMFM-2000L。
3. Lead-win also supplies charging system, discharging unit, filtering system, conveying system and filling system.
