Double Planetary Power Mixer
Products profile

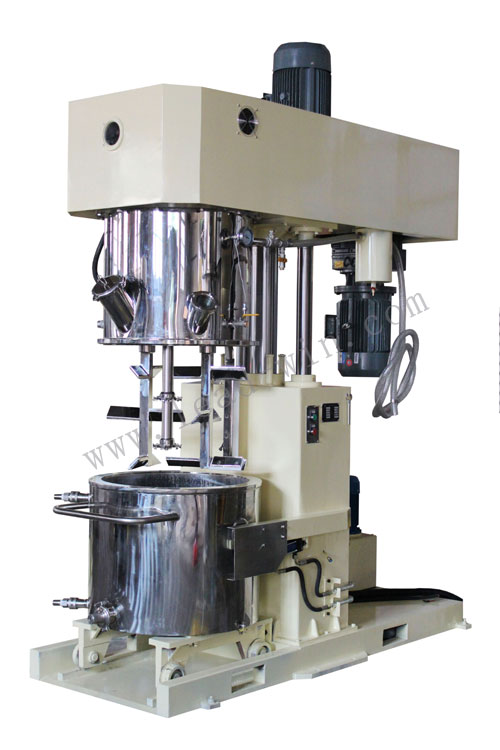

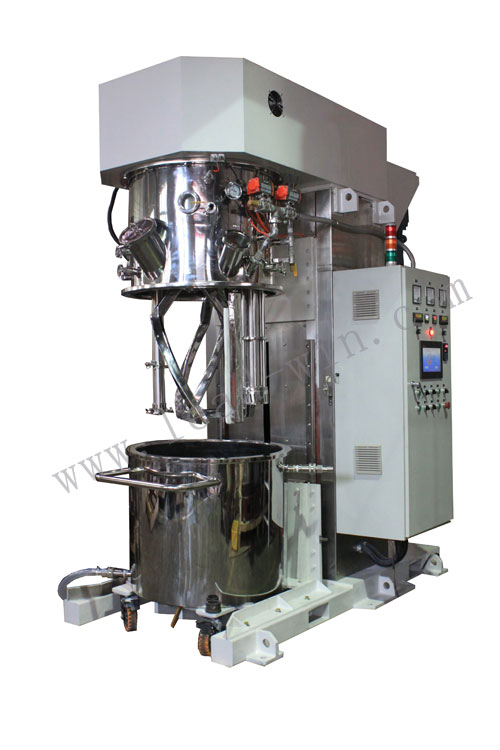

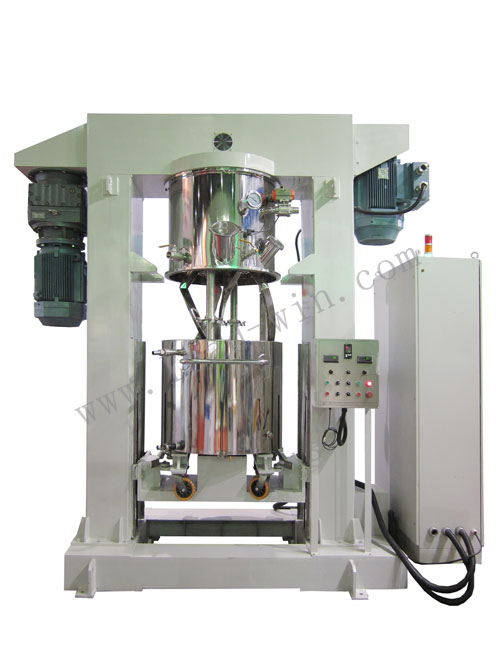

Double Planetary Power Mixer is a new type efficient mixer to dissolve, mix, disperse and homogenize liquid mixture, or liquid powder mixture. Stirred by the self-rotating and revoluting low-speed mixing blades, high-speed stirrer, movable scraper, under the 3D movement, the material in the tank will be homogeneously mixed in short time. The lathed and polished tank internal wall ensures the movable blades complete and through sweep the material from it. This model is suitable for dissolving, mixing high-viscosity and high-density material and is widely used in the production lines making battery, silicone adhesive, inks, dye, glue and high viscosity painting etc..
Products Features:
1. Small clearance 4~6mm between blades, 3~6mm between blades and internal wall, guarantees high efficient mixing without dead angle;
2. Low noise Even at 23M/S linear velocity, through precision machining, professional assembled, the high degree of adaptability of the components ensures the low abrasion and smoothly running with low noise;
3. Corrosion resistance zero leakage with soft seal or static seal, and full enclosed planetary transmission enhance sealability 50% better than traditional one and make the vacuum degree to -0.098MPa and long-time keep the vacuum to give a free-contamination working condition;
4. High strength according to the mixing technics requirements, and based on strict calculation, Lead-win mixer is strong for dealing with high-viscosity and high solid content battery's slurry, adhesive etc.
5. High integration combination of pre-mixing, mixing, filtering with seamless quick connection in vacuum space. PLC control is available and integrating speed control, temperature control, lifting control, vacuum control in one panel;
6. Various blades including double-spiral-blade, double-leaf-blade, double-butterfly-blade, tri-spiral-blade, and double-frame-blade are available. You can choose lifting-tank or lifting-mixer beam to meet your production requirement.
Technical Data
Mode & Spec. LDPPM-2L LDPPM-5L LDPPM-60L LDPPM-100L Tank Dia:×Dep. Φ180×160 Φ240×180 Φ500×450 Φ596×500 Volume Full liters 3.8 60 88 138 Valid liters 2 5 60 100 Motor Mixer KW 0.55 0.75 5.5 7.5 Disperser/homogenizer KW 0.75 1.5 5.5 11 Speed Revolution RPM 50 50 50 60 Mixer RPM 80 80 80 90 Disperser/homogenizer RPM 3000 3000 3000 3000 linear velocity Disperser m/s 10 10 20 20 Optional：LDPPM-10L、LDPPM-30L、LDPPM-50L、LDPPM-80L、LDPPM-150L、LDPPM-600L、LDPPM-800L、LDPPM-2000L。
Mode & Spec. LDPPM-200L LDPPM-300L LDPPM-500L LDPPM-1000L Tank Dia:×Dep. Φ750×650 Φ836×720 Φ1000×830 Φ1266×1000 Volume Full liters 287 395 650 1258 Valid liters 200 300 500 1000 Motor Mixer KW 11 18.5 45 55 Disperser/homogenizer KW 22 30 55 75 Speed Revolution RPM 52 40 35 30 Mixer RPM 83 65 55 45 Disperser/homogenizer RPM 2800 2200 2200 2200 linear velocity Disperser m/s 23 23 23 23 Mode & Spec. LDPPM-1500L LDPPM-2000L Tank Dia:×Dep. Φ1495×1080 Φ1614×1200 Volume Full liters 1895 2455 Valid liters 1000 2000 Motor Mixer KW 75 90 Disperser/homogenizer KW 55 75 Speed Revolution RPM 30 26 Mixer RPM 22 22 Disperser/homogenizer RPM 650 600 linear velocity Disperser m/s 10.5 10.5 Remarks:：
1. All data are Lead-win standard spec subject to real production requirement;
2. Lead-win also supplies charging system, discharging unit, filtering system, conveying system and filling system.
3. Ultrasonic mixing unit is available to create cavitation to realize homogenizing, mixing , dispersing, dissolving, extracting, defoaming, and accelerating reaction etc.
