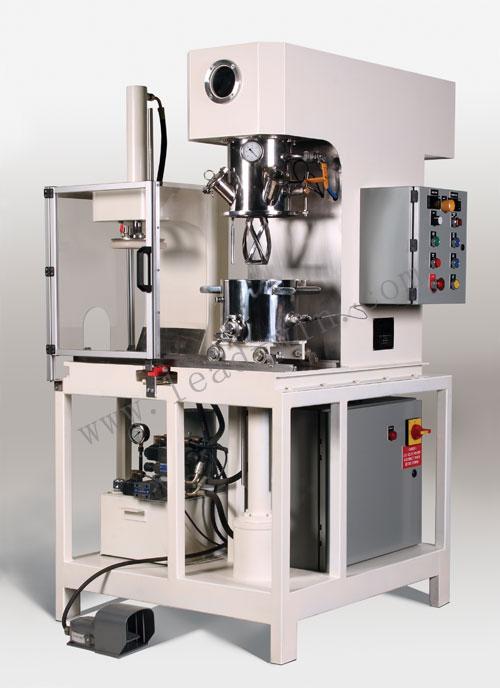

Product display

Product introduction

The mixing paddle of the double planet mixer rotates at the same time, which makes the materials in the tank move up and down and around in a cycle, so that the mixing (mixing) effect can be achieved in a short time. The inner wall of the tank is finished by a large vertical lathe, and then automatically polished by a large polishing machine to ensure that the movable scraper on the planetary box completely scrapes off the materials on the inner wall of the tank when it rotates. This machine is especially suitable for dissolving, mixing, mixing and reaction process from powder to high viscosity and high density materials. It is widely used in battery, organic silica gel, ink, dye, adhesive, high viscosity coating and other chemical products.

Product characteristics

1. The clearance between low clearance impeller and paddle (4-6 mm), impeller and barrel wall (3-4), impeller and barrel bottom (2-3 mm) is low. The precise clearance between mixing slurry and inner wall of mixing tank is that there is no dead angle in the mixing tank, with high kneading effect, so that materials can quickly penetrate and knead in a short time.

2. Low noise parts precision processing, professional tooling, parts with high degree of fit, low wear, smooth operation and low noise; under full load operation, create a low noise working space.

3. The planetary gear box adopts full sealing structure and omnidirectional sealing concept, which improves the sealing performance by 50% on the traditional basis; the vacuum degree can reach - 0.098 MPa, and the vacuum retention degree is high, which ensures zero pollution in the mixing process.

4. According to different mixing processes (wet mixing and dry wet mixing), high strength is suitable for the mixing reaction of positive and negative electrode paste and binder with high viscosity and high solid content after strict strength calculation.

5. Integrated high premixing, mixing, turnover, filtration links seamless quick disassembly docking, no contact with the air. PLC automatic control, speed, temperature, lifting, vacuum system, can be integrated in a panel control.

6. With strong compatibility, double twist, double blade, double butterfly, triple twist, double straight frame agitator and bucket or beam type can be selected to meet the production requirements under different working conditions.

technical parameter

remarks:

1. The above technical parameters are the basic equipment configuration of Lingyu enterprise, and the specific configuration needs to be adjusted according to the actual production process of users.

2. At the same time, users can choose the feeding system, hydraulic discharge system, filtering system, conveying system, filling and sealing system for supporting use.
