Laboratory homogeneous emulsion mixer
Product display
Product introduction
Laboratory high shear homogenization emulsifying machine is driven by high-speed motor, which produces strong liquid shear and severe high-frequency mechanical effect, which makes the experimental fluid materials bear tens of thousands of shearing, tearing and mixing per minute under the action of huge centrifugal force, so as to achieve the effect of dispersion, homogenization and emulsification.
Product characteristics
1. The equipment is small in size, practical and convenient.
2. Low noise, high power, can meet the requirements of laboratory working environment.
3. Depending on the size of the container, the dispersive and homogeneous working heads with different diameters can be replaced.
technical parameter
model
（MODE）output power
（W）Voltage
（V）speed
（r/min）operation mode Configuration of working head
（MM）Treatment capacity
（L）Dimensions
（MM）weight
（KG）LYFJ200-S 200 220 300～21000 Intermittent Φ12 Φ18 0.02～0.8 300×260×760 7 LYFJ300-S 300 220 300～12000 Intermittent Φ28 Φ36 2～18 300×260×760 8 LYJRJ300-S 300 220 200～11000 continuity Φ70 5～40 300×260×760 15 remarks:

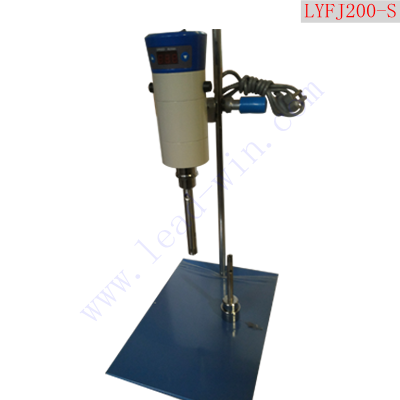

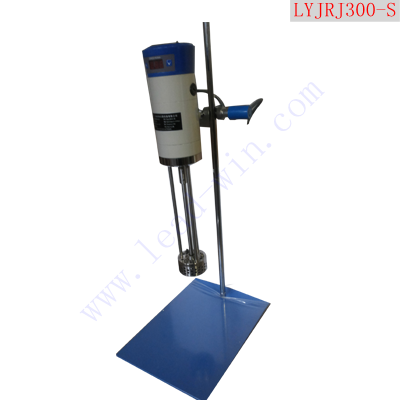

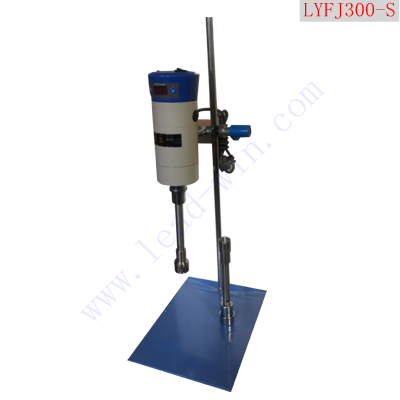

1. Lyfj-s is a digital display high-speed homogenizer, and lyjrj-s is a digital display high shear emulsifying machine.
2. The emulsified parts are made of SS304.
3. Mixing cylinder and manual lifting table can be added.
