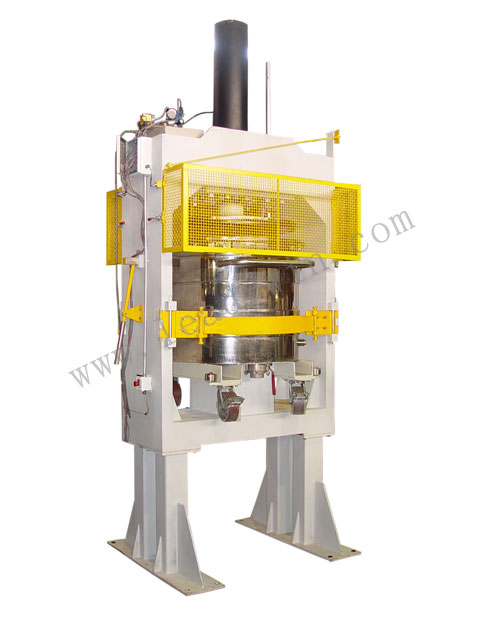

Disc micro grinder
Product introduction
Disc grinder is a kind of wet grinding equipment which can grind materials to micron level. The efficient dual cooling system and micro clearance centrifugal separation system make the material not blocked due to the blockage of the separator. The service life of the filter screen is greatly prolonged. The filter screen can also be removed and cleaned or replaced separately.
It is mainly used in water-based coatings, pigments, dyes, color paste, water-based ink, medicine, cosmetics, photographic materials, electronic paste and other industries with high efficiency wet grinding.
Product characteristics
1. The equipment is simple in appearance, compact in structure and convenient in operation, which is suitable for mass production and continuous production.
2. All materials in contact with materials are made of high-quality wear-resistant materials with long service life and less pollution.
3. The fence type dynamic separator or static screen is adopted to greatly increase the filtering area and ensure the smooth flow of materials in and out.
4. The whole machine has high precision, low noise and no obvious vibration.
5. Pu, ceramic and alloy steel can be selected according to customer requirements.
6. Variable frequency speed regulation and PLC control system can be selected.
Product model
model(Mode & Spec.) electric machinery(Power for Press) KW Volume of grinding cylinder(Volume)L Processing batch（Yield）L Grinding medium（zirconia beads）mm Dimensions（Dimensions）mm LPD-0.5 1.5 0.5 1-5 0.3-2.2 LPD-5 11 5 50-200 0.8-3.0 1100*850*1100 LPJ-5 15 5 50-200 0.1-2.2 1100*850*1100 LPD-15 18.5 15 100-500 0.8-3.0 1500*900*1200 LPJ-15 18.5/22 15 100-500 0.1-2.2 1500*900*1200 LPD-30 22/30 30 200-1000 1.2-3.0 1800*1000*1200 LPJ-30 22/30 30 200-1000 0.1-2.2 1800*1000*1300 LPD-50 37/45 50 300-1500 1.2-3.0 2000*1100*1500 LPJ-60 37/45 60 300-5000 0.1-2.2 2000*1100*1800 LPJ-100 55/75 100 500-2000 0.1-2.2 2500*1300*1800 LPJ-260 110 260 1000-8000 0.3-2.2 3200*1800*2200
